Quickstart

This tutorial will walk you through simulating data from a Negative Binomial-Dirichlet Multinomial (NBDM) model, fitting it with SCRIBE, and visualizing the results. See all the available models in the SCRIBE Models for Single-Cell RNA Sequencing documentation.

Setup

First, let’s import the necessary libraries and set up our directories:

import os
import jax
from jax import random
import jax.numpy as jnp
import numpy as np
import matplotlib.pyplot as plt
import scribe

# Define directories
OUTPUT_DIR = "path/to/output"
FIG_DIR = "path/to/figures"

# Create output directory
os.makedirs(OUTPUT_DIR, exist_ok=True)
os.makedirs(FIG_DIR, exist_ok=True)

Simulating Data

Next, we’ll simulate data from the NBDM model. We’ll generate data for 10,000 cells and 20,000 genes. For memory efficiency, we’ll use batching when generating samples, generating the samples in the GPU using JAX and then moving the samples to the CPU using NumPy.

First, let’s set up our simulation parameters:

# Setup random seed
rng_key = random.PRNGKey(42)

# Define dimensions
n_cells = 10_000
n_genes = 20_000
batch_size = 4096

# Define prior parameters
r_prior = (2, 1)  # Shape and rate for Gamma prior on r
p_prior = (1, 1)  # Alpha and beta for Beta prior on p

Now we’ll sample the true parameters from their respective prior distributions:

# Split random keys
key1, key2 = random.split(rng_key, 2)

# Sample true parameters
r_true = random.gamma(key1, r_prior[0], shape=(n_genes,)) / r_prior[1]
p_true = random.beta(key2, p_prior[0], p_prior[1])

With our true parameters in hand, we can generate the count data. We’ll do this in batches to manage memory usage:

import numpyro.distributions as dist

counts_true = np.zeros((n_cells, n_genes))

# Sample in batches
for i in range(0, n_cells, batch_size):
    current_batch_size = min(batch_size, n_cells - i)
    key_batch = random.fold_in(rng_key, i)

    # Sample from Negative Binomial distribution
    batch_samples = dist.NegativeBinomialProbs(
        r_true, p_true
    ).sample(key_batch, sample_shape=(current_batch_size,))

    counts_true[i:i+current_batch_size] = np.array(batch_samples)

Fitting the Model

Now that we have our simulated data, we can fit it using SCRIBE. We’ll run the inference for 25,000 steps using the base NBDM model:

n_steps = 25_000

# Run SCRIBE inference with the NBDM model (default settings)
results = scribe.run_scribe(
    counts=counts_true,
    zero_inflated=False,        # NBDM model has no zero-inflation
    variable_capture=False,     # NBDM model has no variable capture probabilities
    mixture_model=False,        # Not using a mixture model
    r_prior=r_prior,            # Using our defined priors
    p_prior=p_prior,
    n_steps=n_steps,
    batch_size=batch_size,
    seed=42
)

Visualizing Results

Let’s create some visualizations to assess our model fit. First, let’s look at the ELBO loss history:

# Plot loss history
fig, ax = plt.subplots(figsize=(3.5, 3))
ax.plot(results.loss_history)
ax.set_xlabel("step")
ax.set_ylabel("ELBO loss")
plt.tight_layout()
plt.savefig(os.path.join(FIG_DIR, "loss_history.png"), dpi=300)
plt.show()

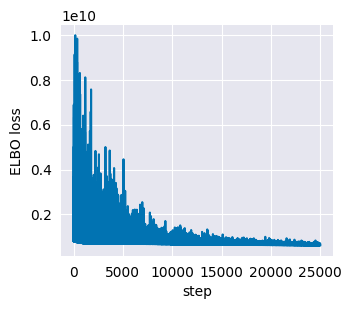

ELBO loss history

ELBO loss history showing convergence of the model fitting process. The spiky nature of the loss is due to the batching process.

We can also compare our inferred parameters to the true values. Let’s look at the posterior distribution for p:

fig, ax = plt.subplots(figsize=(3.5, 3))

# Get posterior distribution for p
distribution = results.get_distributions()['p']

# Plot posterior with true value
scribe.viz.plot_posterior(
    ax,
    distribution,
    ground_truth=p_true,
    ground_truth_color="black",
    color=scribe.viz.colors()["dark_blue"],
    fill_color=scribe.viz.colors()["light_blue"],
)

ax.set_xlabel("p")
ax.set_ylabel("posterior density")
plt.tight_layout()
plt.savefig(os.path.join(FIG_DIR, "p_posterior.png"), dpi=300)
plt.show()
Posterior distribution for p

Posterior distribution for the \(p\) parameter. The true value from simulation is shown in black.

Let’s generate a similar plot for various examples of the inferred \(r\) parameter:

# Select a few genes to visualize
selected_idx = np.random.choice(n_genes, 9, replace=False)

# Initialize figure
fig, axes = plt.subplots(3, 3, figsize=(9.5, 9))

# Flatten axes
axes = axes.flatten()

fig.suptitle(r"$r$ parameter posterior distributions", y=1.005, fontsize=18)

# Loop through selected genes
for i, ax in enumerate(axes):
    # Get the r distribution for this gene
    gene_dist = results.get_distributions(backend="scipy")['r'][selected_idx[i]]

    # Plot distribution
    scribe.viz.plot_posterior(
        ax,
        gene_dist,
        ground_truth=r_true[selected_idx[i]],
        ground_truth_color="black",
        color=scribe.viz.colors()["dark_blue"],
        fill_color=scribe.viz.colors()["light_blue"],
    )

    ax.set_xlabel(f"Gene {selected_idx[i]}")

plt.tight_layout()
plt.savefig(os.path.join(FIG_DIR, "r_posteriors.png"), dpi=300)
plt.show()

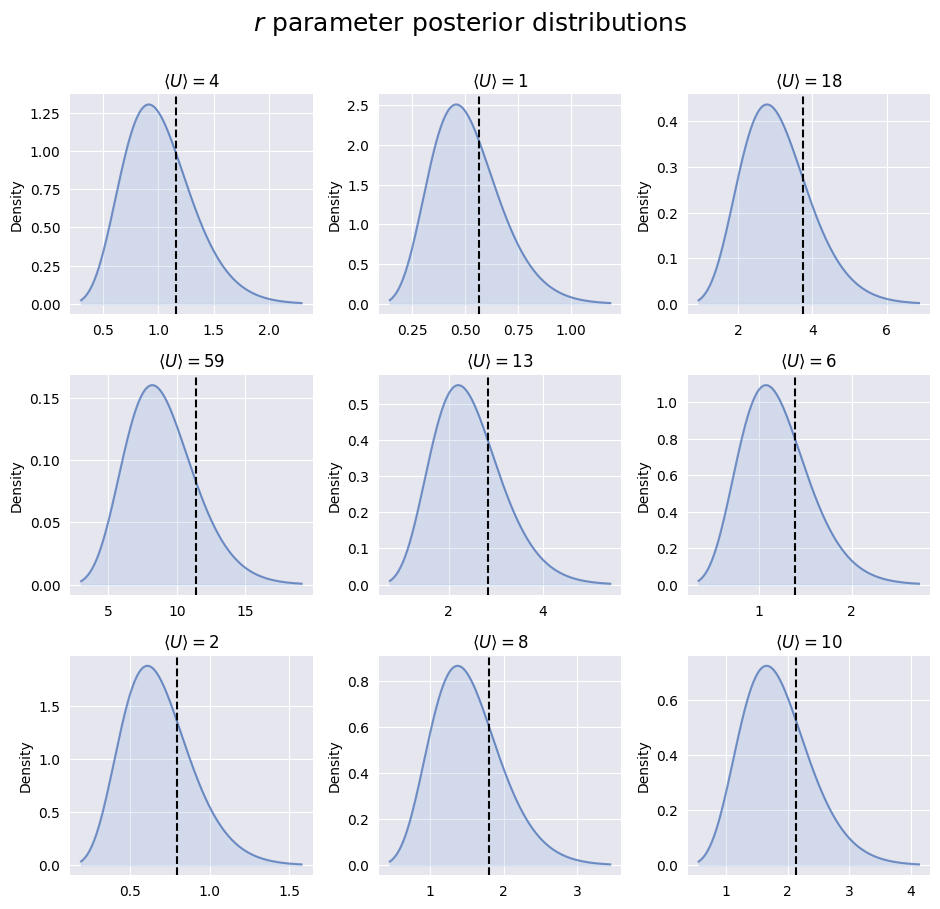

Posterior distribution for r

Posterior distribution for multiple examples of the \(r\) parameter. The true value from simulation is shown in black.

Finally, we can generate posterior predictive checks (PPCs) to assess model fit:

# Generate PPC samples
n_samples = 500
ppc = results.get_ppc_samples(n_samples=n_samples, rng_key=random.PRNGKey(43))

# Select a gene to visualize
gene_idx = 0

# Plot PPCs for the selected gene
fig, ax = plt.subplots(figsize=(3.5, 3))

# Compute and plot credible regions
credible_regions = scribe.stats.compute_histogram_credible_regions(
    ppc['predictive_samples'][:, :, gene_idx],
    credible_regions=[95, 68, 50]
)

scribe.viz.plot_histogram_credible_regions_stairs(
    ax,
    credible_regions,
    cmap='Blues',
    alpha=0.5
)

# Plot observed counts for this gene
bin_edges = credible_regions['bin_edges']
hist, _ = np.histogram(counts_true[:, gene_idx], bins=bin_edges)
hist = hist / hist.sum()  # Normalize
ax.stairs(hist, bin_edges, color='black', alpha=0.8, label='Observed')

ax.set_xlabel(f"Counts for Gene {gene_idx}")
ax.set_ylabel("Probability")
ax.legend()

plt.tight_layout()
plt.savefig(os.path.join(FIG_DIR, "ppc_example.png"), dpi=300)
plt.show()
Posterior predictive checks for a gene

Posterior predictive checks for the data generative process. The distribution of counts observed in the simulated data is shown in black. The shades of blue show the credible regions for the distribution of counts under the posterior predictive distribution.

The visual assessment of the model fit reveals that the model is able to capture the data generating process. From here, we can continue our analysis with the inferred parameters.

Comparing Models

Let’s compare the basic NBDM model with a Zero-Inflated Negative Binomial (ZINB) model to see which fits the data better:

# Fit the ZINB model
zinb_results = scribe.run_scribe(
    counts=counts_true,
    zero_inflated=True,         # Use zero-inflation
    variable_capture=False,
    mixture_model=False,
    r_prior=r_prior,
    p_prior=p_prior,
    gate_prior=(1, 1),          # Prior for dropout probabilities
    n_steps=n_steps,
    batch_size=batch_size,
    seed=42
)

# Compare models using WAIC
from scribe.model_comparison import compare_models

# Generate posterior samples if not already done
if results.posterior_samples is None:
    results.get_posterior_samples(n_samples=100)

if zinb_results.posterior_samples is None:
    zinb_results.get_posterior_samples(n_samples=100)

# Compare models
comparison = compare_models(
    [results, zinb_results],
    counts_true,
    n_samples=100,
    batch_size=batch_size
)

# Display comparison results
print(comparison[["model", "waic_2", "delta_waic_2", "weight_2"]])

Working with the Results

The results object provides several ways to access and work with the fitted model:

  1. Accessing Parameters: Get direct access to model parameters

# Access p parameters (Beta distribution)
p_concentration1 = results.params['p_concentration1']
p_concentration0 = results.params['p_concentration0']

# Access r parameters (depends on distribution used - e.g., Gamma)
r_concentration = results.params['r_concentration']
r_rate = results.params['r_rate']

  1. Working with Subsets of Genes: You can use indexing to focus on specific genes

# Get results for the first gene
gene0_results = results[0]

# Get results for genes 0, 10, and 20
selected_genes = results[[0, 10, 20]]

# Boolean indexing also works
highly_variable = np.random.choice([True, False], size=n_genes, p=[0.1, 0.9])
hv_results = results[highly_variable]

  1. Computing Log Likelihoods: Use the log likelihood function to evaluate model fit

# Compute log likelihoods for each cell
log_liks = results.compute_log_likelihood(
    counts_true,
    return_by='cell',
    batch_size=batch_size
)

# Compute log likelihoods for each gene
gene_log_liks = results.compute_log_likelihood(
    counts_true,
    return_by='gene',
    batch_size=batch_size
)

Warning

Never trust any model fit (either from SCRIBE or any other analysis pipeline) without at least visualizing how the fit compares to the observed data. There are no silver bullets in statistics, and the best assessment of any fitting procedure is to visualize how the fit compares to the observed data.

This completes our quickstart guide! You’ve now learned how to:

  • Simulate data from the NBDM model

  • Fit the model using SCRIBE

  • Compare different model types

  • Visualize and assess the results

  • Work with the ScribeResults object

For more detailed examples and advanced usage, check out our tutorials section.
